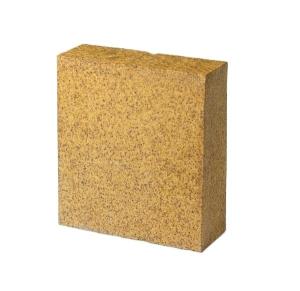

Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength

Name: Steel Industry Magnesia Alumina Spinel Refractory Brick With 912 Al2O3 Content And 5590 Mpa Cold Crushing Strength
Brand: HongTai
Price: 7 USD

$China Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength wholesale$ $China Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength wholesale$ $China Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength wholesale$ $China Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength wholesale$ $China Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength wholesale$ $China Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength wholesale$

Place of Origin : Henan, China

Shape : Block

Material : spinel

SiO2 Content (%) : 0.6%

Al2O3 Content (%) : 9-12%

MgO Content (%) : 87-90%

CaO Content (%) : 1.5%

Refractoriness (Degree) : 1770°< Refractoriness< 2000°

CrO Content (%) : -

SiC Content (%) : -

Model Number : HT

Brand Name : HongTai

Processing Service : Bending, Welding, Punching, Decoiling, Cutting, Moulding

Bulk density(g/cm3) : 2.9-3.05

Size : Customized Size

Color : Yellow

Cold crushing strength/Mpa : 55~90

Apparent porosity/% : 13-16%

Working temperature : 1600-1900

Name : Magnesia Alumina Spinel Refractory Brick

MOQ : 10 tons

Price : CN¥7,230.70-8,676.84/tons

Contact Now

CGood Stability Spinel Refractory Magnesia Alumina Spinel Refractory Brick for Steel Industry

Product Description

Description of Magnesia Alumina Spinel Refractory Brick:
Magnesia Alumina Spinel Refractory Brick are a high-performance alkaline refractory material widely used in high-temperature industrial environments, such as cement rotary kilns, non-ferrous metallurgy, lime kilns, glass industry and other fields that need to withstand extreme temperatures and chemical erosion. Here are some key features and introduction of Magnesia Alumina Spinel Refractory Brick:

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$
Main Components of Magnesia Alumina Spinel Refractory Brick
Periclite (MgO): Provides the basic framework and high temperature resistance of the brick body.
Magnesium Aluminate Spinel (MgAl2O4): Is a stable solid solution that improves the brick's resistance to chemical attack and thermal shock stability.

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$ $Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Magnesia Alumina Spinel Brick

It takes good quality fused magnesite and fused mgo-cr clinker as raw material, formed under high pressure,burned in high
temperature. It has character of corrosion resistance.
Main using for VOD,AOD,SKF,LF,RH etc. secondary refining furnace.

Advantage of Magnesia Alumina Spinel Brick

Products with anti- alkaline corrosion ability, anti-erosion ability, good thermal stability, high strength , less pollution,RUL
advantages

Detail Specification

Detail Specifications of Magnesia Alumina Spinel Brick

	FM-MA80	FM-MA85	FM-MA90
MgO %	85	88	90
Al2O3 %	7	6.5	6.5
SiO2 %	4	2.4	1.2
CaO %	1.5	1.3	1.2
Fe2O3 %	1.7	1.4	1.0
Apparent porosity %	17	17	17
Bulk density (g/cm3)	2.93	2.93	2.94
Cold crushing strength (MPa)	50	50	55
Refractoriness under load (°C)	1610	1650	1700
Thermal shock resistance (times)	3-6	3-6	3-6

Standard size: 230 x 114 x 65 mm ,Special size and OEM Service also provide
The size is precise, providing kinds of shapes according to customer's drawing

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Characteristics of Magnesium Aluminum Spinel brick
High Strength: Through high pressure forming and high temperature sintering, magnesium aluminum spinel bricks have obtained high mechanical strength and can withstand heavy loads and wear.
Thermal Shock Stability: Due to the difference in thermal expansion coefficients of its components, tiny pores are formed inside the brick body, which helps to absorb thermal stress and reduce damage caused by sudden temperature changes.
Resistance to Chemical Attack: The spinel structure can resist the erosion of acidic and some alkaline substances, especially suitable for areas in contact with clinker in cement kilns.
Low Porosity: Reduces the permeability of the material and improves the density and durability of the overall structure.
Long Life: In the transition zone and firing zone of the cement rotary kiln, magnesium aluminum spinel bricks can be consumed synchronously with the materials in the kiln, extending the overall service life of the kiln lining.

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Product Applications

Applications of magnesia alumina spinel bricks
Cement rotary kiln: upper and lower transition zones and firing zones.
Nonferrous metallurgy: such as smelting furnaces for copper, nickel, lead and zinc.
Lime kiln: high temperature area.
Glass industry: regenerator and roof of reverberatory furnace.

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Product details

Packaging & Shipping

Packing of rmagnesia alumina spinel bricks

1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Shipping of rmagnesia alumina spinel bricks

1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Workshop corner

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Why choose Us

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

1. Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractorys production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.

2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.

3. Export experiences:
Now we have gained a global sales network reaching Taiwan, Russia, Vietnam, Pakistan, Bulgaria, French, India, Congo, Angola, South Africa, and so on.

4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have provided the fine technical guarantee for the production and testing.

5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Certificates

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$

Customer visit

$Steel Industry Magnesia Alumina Spinel Refractory Brick With 9-12% Al2O3 Content And 55-90 Mpa Cold Crushing Strength$
