Cordierite Mullite Ceramic Honeycomb Heat Storage Carrier with 80% Al2O3 Content

Product Categories

High Alumina Brick [1319]
AZS Refractory Bricks [723]
Fire Clay Brick [579]
Silica Refractory Bricks [780]
Magnesia Refractory Bricks [1661]
Insulation Refractory Bricks [559]
Acid Proof Brick [228]
Refractory Ball [334]
Special Firebrick [772]
Refractory Castable [468]
Corundum Refractoriess/Abrasives [568]
Refractory For Glass Furnace [603]
Refractory For Coke Oven [6]
Refractory For Metallurgy Industry [157]
Refractory For Cement Industry [193]
Refractory For Power Sector [4]
Refractory For Steel Industry [191]
Other Refractory Products [511]

Henan Hongtai Kiln Refractory Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Cordierite Mullite Ceramic Honeycomb Heat Storage Carrier with 80% Al2O3 Content

Name: Cordierite Mullite Ceramic Honeycomb Heat Storage Carrier with 80 Al2O3 Content
Brand: Hongtai
Price: 0.50 USD

Place of Origin : Henan China

Shape : Plate

Material : Mullite Cordierite

SiO2 Content (%) : 18

Al2O3 Content (%) : 80

MgO Content (%) : 13.5

Refractoriness (Degree) : Common (1580°< Refractoriness< 1770°)

CrO Content (%) : international standard

Brand Name : Hongtai

Processing Service : Bending, Welding, Punching, Decoiling, Cutting, Moulding

Product name : Mullite Cordierite Shed Board

Application : Refractory Products

Color : White

Size : Customized Size

Raw material : Cordierite Mullite

Usage : Ceramic Kiln

Certificate : ISO9001

Sample : Freely Provided

Packing : Standard Wooden Pallet

Feature : Thermal shock resistance

Packaging Details : 1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 1.5-1.7Tons, max 2.0 Tons.
(3

Supply Ability : 3000 Ton/Tons per Month

MOQ : 200 pieces

Price : $0.50 - $5.00/pieces

Contact Now

Product Description

Mullite cordierite

Regenerative high temperature air combustion (HTAC) is a new combustion technology with great energy saving and environmental protection. The regenerator is a key component of regenerative burners. It is widely used in steel, machinery, building materials, petrochemical, and colored. In various furnaces, hot blast furnaces, heat treatment furnaces, cracking furnaces, roasters, melting furnaces, soaking furnaces, oil and gas boilers, etc. in the metal smelting industry, the technology is to make two regenerators through the reversing device. Alternate endothermic heat release, maximally recover the heat of the flue gas, and then heat the combustion air and gas to above 1000 °C, even low-calorie inferior fuel (such as blast furnace gas) can achieve stable ignition and efficient combustion, saving fuel 40 to 70%. The output is increased by more than 15%, the oxidized burning loss of the billet is reduced by more than 40%, the NOx emission is less than 100ppm, and the flue gas discharge temperature is lower than 160 °C, which greatly reduces the global greenhouse effect. If most industrial furnaces and kiln in the country adopt HTAC technology, its economic and social benefits are immeasurable, which will greatly alleviate the shortage of energy and effectively improve the living environment of human beings.
The regenerators are mainly composed of honeycomb ceramics, heat storage balls and heat storage tubes. The specific surface area of the honeycomb ceramic is more than 5 times that of the small ball, the heat transfer capacity is 4 to 5 times larger, and the airflow resistance is only 1/3 of the small ball, and the heat penetration depth is small. Therefore, honeycomb ceramics are more conducive to low-oxygen combustion than heat storage balls, so that the furnace temperature is uniform, the heat transfer rate is fast, and the steel can be quickly tapped, which greatly reduces the oxidation burn and the formation of NOx gas, and
significantly improves the environmental protection and energy saving effect. The volume of the regenerator with honeycomb ceramics is greatly reduced, and a sufficient amount of burners can be arranged to meet the heat load requirements. The direct airflow passage of the honeycomb ceramic is more difficult to block than the labyrinth passage of the small ball, and the self-cleaning property is good, and is more suitable for the uncleanness of burning in China.Corundum/mullite, cordierite/mullite composite phase honeycomb ceramic regenerator has remarkable advantages such as high temperature resistance, acid and alkali corrosion resistance, good thermal shock resistance, high strength, large heat storage capacity and good thermal conductivity. And the service life is greatly improved.

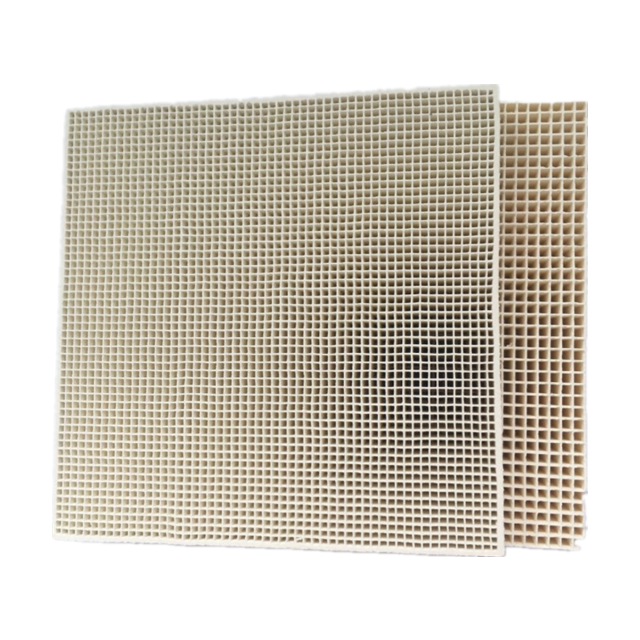

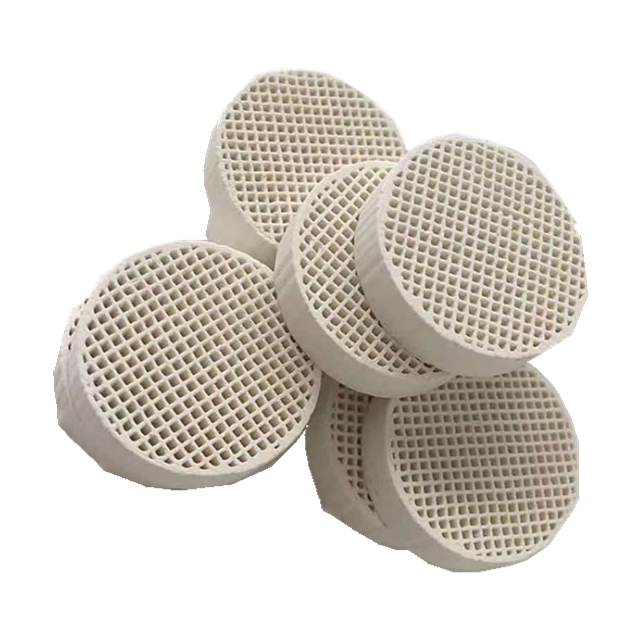

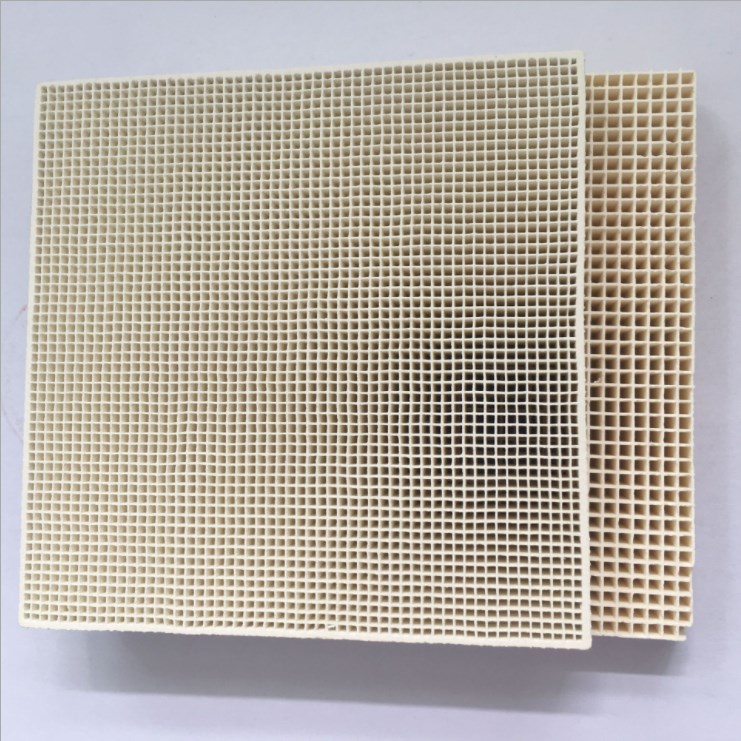

Cordierite Mullite Ceramic Honeycomb Heat Storage Carrier with 80% Al2O3 Content

Honeycomb ceramic regenerator regenerative high-temperature combustion technology is a new concept of combustion technology that combines the recovery of flue gas waste heat with efficient combustion and reduction of NOx emissions to achieve extreme energy savings and limit NOx emissions. The dual purpose of quantity.
The technical features are:
(1) Using the regenerative flue gas waste heat recovery device, alternately switching the flue gas and air/gas to make it flow through the regenerator, which can recover the physical heat of the high-temperature flue gas to the maximum extent and save energy (general energy saving 10 %~70%), improve the thermal efficiency of thermal equipment, while reducing CO2 emissions (10% to 70%).
(2) Through the organization of lean oxygen combustion, the flame combustion area is expanded, and the flame boundary is extended to the furnace boundary, so that the temperature distribution in the furnace is uniform, and the NOx emission in the flue gas can be reduced by more than 40%.
(3) The average temperature in the furnace increases, which enhances the heat transfer in the furnace, resulting in the same size of thermal equipment, the output can be increased by more than 20%, reducing the cost of the equipment. (4) Low calorific value fuels can obtain higher furnace temperatures by means of high temperature preheated air or high temperature preheated gas, which expands the application range of low calorific value fuels.
The regenerative honeycomb ceramic, which is also a high-temperature combustion regenerator, is the key and core component of the regenerative high-temperature combustion technology (HTAC technology). It has been widely used in metallurgical machinery industry for various push-type heating furnaces, step-type heating furnaces, heat treatment furnaces, forging furnaces, melting furnaces, ladle/tune roasters, soaking furnaces, radiant tube burners, and hoods. Furnace, blast furnace hot blast stove; various ceramic kiln in the building materials industry, various glass kiln; various tubular heating furnaces, cracking furnaces and other industrial furnaces in the petrochemical industry.

Specification

Product name and performanceindex

Low temperature

High Temperature

Fender

Material

Cordierite/Mullite

Alundum/Mullite

Electro-melting Alundum

Altitude Aluminium

M70

M60

Chemical Content

Al₂o₃(%)

34.5±1.0

70±1.0

60±1.0

85±1.0

56~60

Sio₂(%)

49.7±1.5

29±1.0

38±10

13±1.0

30~35

Mgo(%)

13.5±1.5

Modicum

other (%)

<2.0

<3.0

<4.0

<8.0

W/v (g/cm³)

0.7~0.85

1.00~1.15

0.95~1.05

1.65~1.95

1.20~1.55

(×10-6/℃)coefficient of thernal expansion

2.0~3.0

4.5~5.2

4.2~5.0

6.5~7.5

7.0~8.0

Thermal conductivity (W/n.k)

≥1.1

≥1.0

(℃)Highest working temperature

1350

1600

1550

1600

1500

Compressive strength(Normal temperature)

A向

>23.0

>26.0

>23.0

>25.0

>20.0

B向

>5.5

>10.5

>9.0

>5.5

Packing & Delivery

Packaging of powder shape or raw material products
1. 1 ton bags in container, 25 MT/20 'FCL.
2. 25 kg bags in container, 25 MT/20 'FCL
3. 25 kg bags in ton bags, then in container, 25 MT/20 'FCL
4. as the customer' request
Packaging of Bricks
1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000 mm,
2.Load weight of each pallet: 1.5-2.0 tons.

Shipping
1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quality and quantity guaranteed, and also in accordance with the contract and customer's requirement completely.

Delivery:
15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom
products, the shipping time will delay.
Sample:
Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.
Payment:
It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be
approved by our clients.

Company Profile

Henan HongTai kiln refractory co., LTD. Main products are high alumina brick, clay brick, fused zirconium corundum brick, fireproof ball lightweight insulation brick, wear-resistant pouring material, corundum pouring material, low cement high strength pouring material, impermeable material, self-flowing material, plastic material, and various types of refractory materials.For different industries, the cement industry with anti-flaking high-alumina bricks, alkali resistant bricks, phosphate bricks;Boiler industry USES all kinds of brand wear-resisting brick, corundum brick, mullite brick and other finalizing materials.The company insists on "product quality is the life, enterprise integrity is the foundation", in the fierce market competition, won many users' trust and praise.The products are sold all over the country, as far as Vietnam, India, South Korea, Pakistan, Kazakhstan and other southeast Asian countries and regions.

Henan HongTai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management, strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service. Henan HongTai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.

Why Choose Us

1.Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractories production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO 9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3.Export experiences:
Now we have gained a global sales network reaching Russia, South Korea, Vietnam, Pakistan, Bulgaria, France, India, Egypt, Congo, Angola, South Africa etc.
4. Production equipment:
Production and testing equipment are new, complete and automated or semi- automated. Such modern facilities and equipment have provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipment as follows:
High Temperature RUL. Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester
Our competitive Advantage:
1.Competitive Price. Make the products competitive in your market.
2.Quick Response:We promise quick response at the very first moment when we received your request. 3.Superior Customer Service:The company provides after sales service ensuring customer’s satisfactions,we believe in Long term partnership bringing loyalty.
4.We had been on this filed for many years and we have our own research team,the production process could be controlled strictly.
5.We have developed stable customer base overseas and kept long-term cooperation.

FAQ

1. How can you control your quality?
For each production processing, we have complete QC system for the chemical composition and Physical properties. After production,
all the goods will be tested, and The quality certificate will be shipped along with goods.
2. What's your delivery time?
It usually needs about 15 days- 30 days after receiving the deposit.
3.Do you have any experiences of export?
Yes,and Now we have gained a global sales network reaching Taiwan, Russia, Korea, Vietnam, Pakistan, Bulgaria, French, India,
Congo, Angola, South Africa, and so on.
4. Do you provide free samples?
Yes, we can provide a free sample for testing, If we have sample in stock, The quantity based on the material type, The buyer should bear all the shipping costs.
5. Can we visit your Company?
Yes, certainly. You are very welcome to China and we will be honored to have a customer and friend.
