s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina

Name: s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina
Brand: Hongtai
Price: 3 USD

$China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$ $China s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina wholesale$

Place of Origin : Henan, China

Shape : Block

Material : High purity Alumina

SiO2 Content (%) : Max 1

Al2O3 Content (%) : 93-99

MgO Content (%) : little

CaO Content (%) : Max 0.03

Refractoriness (Degree) : 1770°< Refractoriness< 2000°

CrO Content (%) : little

SiC Content (%) : little

Model Number : alpha corundum, Beta corundum, Alpha-beta corundum

Brand Name : Hongtai

Processing Service : Punching, Cutting, Moulding

Na2O : 6.5% Max

Product name : alpha Beta alumina brick

Application : Glass Furnaces

Color : White

True Density : 3.5g/cm3

Cold Crush Strength : >200Mpa

Bulk Density(g/cm3) : 3.2-3.4 g/cm3

Size : Customized Size

Usage : Furnace Liner

Certificate : ISO9001-2008

MOQ : 2 tons

Price : $3,000.00 - $8,000.00/tons

Contact Now

Product Description

$s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina$

China electrocast refractory brick manufacturer Fused Cast Alpha Beta Alumina brick for glass melting kiln stout, lip and gate

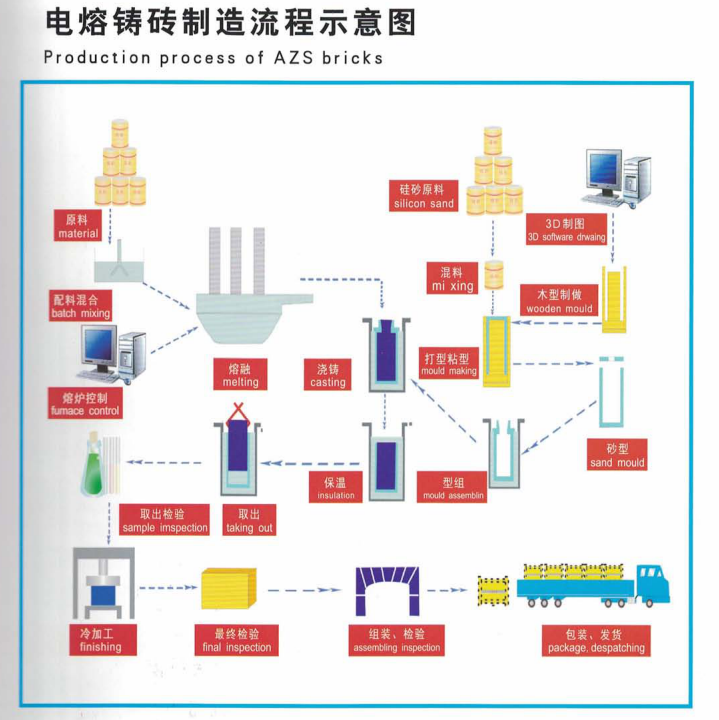

Fused cast alpha beta alumina bricks are made by melting alumina in an electric arc furnace and casting them into a model of a specified specific shape, annealing and heat preservation, and then processing diamond abrasive tools to obtain the desired product.

This product is divided into 3 types according to the different crystal forms and quantity of alumina. The first type is α-Al2O3 as the main crystal phase, called α corundum brick; the second type is α-Al2O3 and β-Al2O3 The main crystal phase, the content is basically 1:1, the α phase content is slightly higher, called α, β corundum brick; the third type is mainly β-Al2O3 crystal phase, called β corundum brick.

Specification

$s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina$

China electrocast refractory brick manufacturer Fused Cast Alpha Beta Alumina brick for glass melting kiln stout, lip and gate

The fused cast corundum brick has good high temperature volume stability and corrosion resistance.

The structure of α-Al2O3 fused cast bricks is dense and has certain resistance to glass melt erosion and erosion resistance.

β-Al2O3 fused cast bricks contain almost no glass phase, basically no shrinkage cavity, good thermal shock resistance, and high temperature resistance to alkali vapor stability.

α-β Al2O3 fused cast bricks have the characteristics of α-Al2O3 and β-Al2O3 fused cast bricks. The main crystal phases are directly combined, and the composition contains only a small amount of glass phase. The crystal structure is compact, the porosity is low, the high temperature wear resistance is good, the mechanical strength is high, and it has good high temperature resistance to alkali vapor stability.

Item			Fused Cast Alumina	Fused Cast Alumina	Fused Cast Alumina
Item				α-β Alumina	α-Alumina	β-Alumina
Chemical Composition	Al2O3	94	98.5	92
		SiO2	1	0.4	-
		NaO2	4	0.9	6.5
		Other oxides	1	0.2	1.5
Crystallograghic	α-Al2O3	44	90	-
Analysis %	β-Al2O3	55	4	99
	Glass Phase	1	6	1

Manufacturing Technique

$s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina$

China electrocast refractory brick manufacturer Fused Cast Alpha Beta Alumina brick for glass melting kiln stout, lip and gate

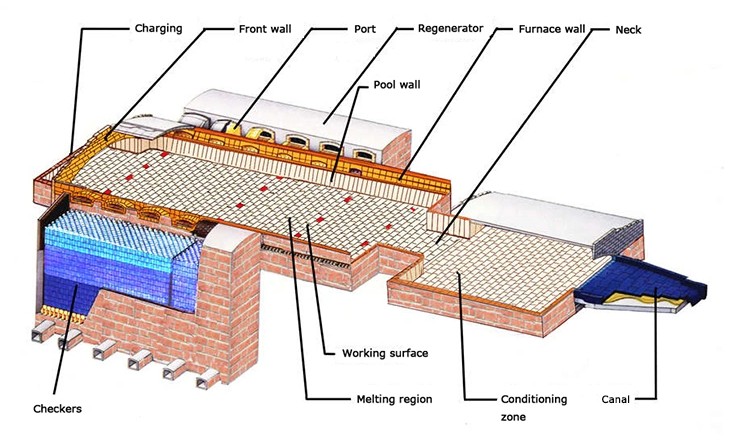

β-Al2O3 fused cast bricks are suitable for the upper structure of the working pool of the glass melting furnace and the combustion port at the back of the melting zone and the breast wall and small furnace flats nearby. The composition of α, β-Al2O3 fused cast bricks contains only a small amount of glass phase, which will not ooze out and pollute the glass melt during use. It is ideal for the cooling part of the glass melting furnace, the bottom of the furnace, and the float glass furnace launder. Furnace building materials, usually used parts are stout brick, lip brick, gate brick.

Packing & Delivery

$s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina$

Packaging for Alpha Beta Alumina brick
1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 1.5-1.7Tons, max 2.0 Tons.
(3)20 Foot Container can be loaded max 25-26Tons, about 13-16Pallets.
2.Can make the package according to customer's requirements.

Shipping for Alpha Beta Alumina brick
1.FEDEX/DHL/UPS/TNT for samples.
2.By Sea for batch goods.
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time of Corundum brick:
(1)Samples:3 days for common shape samples;15 days for special shape samples.
(2)Batch goods:Within 7-10 days for in stock bricks from ordering shipping space to deliver goods and within 20-30 days for NO in stock bricks.
Payment Terms
(1)T/T, Western Union,LC;
(2)Usually 30% deposits,70% balance to be paid before delivery or against copy of BL or negotiations
Others
MOQ: Usually 1 container, MOQ 1Tons, Customers can order certain PCS for special brick.

Company Profile

Henan hongtai kiln refractory co., LTD. Is well aware that there are thousands of demands from customers, which can be summarized in four aspects: reliable quality, timely delivery, reasonable price and considerate service.The company will continue to adhere to the corporate spirit of "contributing to society and serving customers" and the business philosophy of "mutual benefit, win-win, integrity, efficiency, preciseness and responsibility".Our company is willing to develop a wide range of technical exchanges with colleges and universities and colleagues from all walks of life at home and abroad in a flexible and diversified way.

Henan hongtai kiln refractory co., LTD. Main products are high alumina brick, clay brick, fused zirconium corundum brick,
fireproof ball lightweight insulation brick, wear-resistant pouring material, corundum pouring material, low cement high strength pouring material, impermeable material, self-flowing material, plastic material, and various types of refractory materials.For different industries, the cement industry with anti-flaking high-alumina bricks, alkali resistant bricks, phosphate bricks;Boiler industry USES all kinds of brand wear-resisting brick, corundum brick, mullite brick and other finalizing materials.The company insists on "product quality is the life, enterprise integrity is the foundation", in the fierce market competition, won many users' trust and praise.The products are sold all over the country, as far as Vietnam, India, South Korea, Pakistan, kazakhstan, Malaysia and other southeast Asian countries and regions.

Henan hongtai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management,
strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service.Henan hongtai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.

$s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina$

China electrocast refractory brick manufacturer Fused Cast Alpha Beta Alumina brick for glass melting kiln stout, lip and gate

1. Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractorys production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3. Export experiences:
Now we have gained a global sales network reaching Taiwan, Russia, South Korea, Vietnam, Pakistan, Bulgaria, French, India, Congo, Angola, South Africa, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester Bulk Density Tester The Pressure Tester Refractoriness Tester

Customer Photos

$s Electrocast Refractory Brick for Glass Melting Kiln Fused Cast Alpha Beta Alumina$

Hongtai Kiln Refractory has professional sales and after-sale service team who provide customers all-around service about product selection, transportation, installation and operation technology training etc. Now we have established cooperation relationship with many science and research units and our products have been sold to Vietnam, Thailand, Malaysia, South Korea, Pakistan, Kazakhstan, India, Japan, Indonesia, Malaysia, Germany, Italy, Mongolia, Russia, Argentina, Colombia, Egypt, South Africa and etc.
We has 20 years experience on producing Fused Cast Alpha Beta Alumina brick.
