Place of Origin : Henan, China
Shape : Brick
Material : Zircon sand
SiO2 Content (%) : 32
Al2O3 Content (%) : little
MgO Content (%) : little
CaO Content (%) : little
Refractoriness (Degree) : 1770°< Refractoriness< 2000°
CrO Content (%) : little
SiC Content (%) : little
Model Number : Zircon brick
Brand Name : HongTai

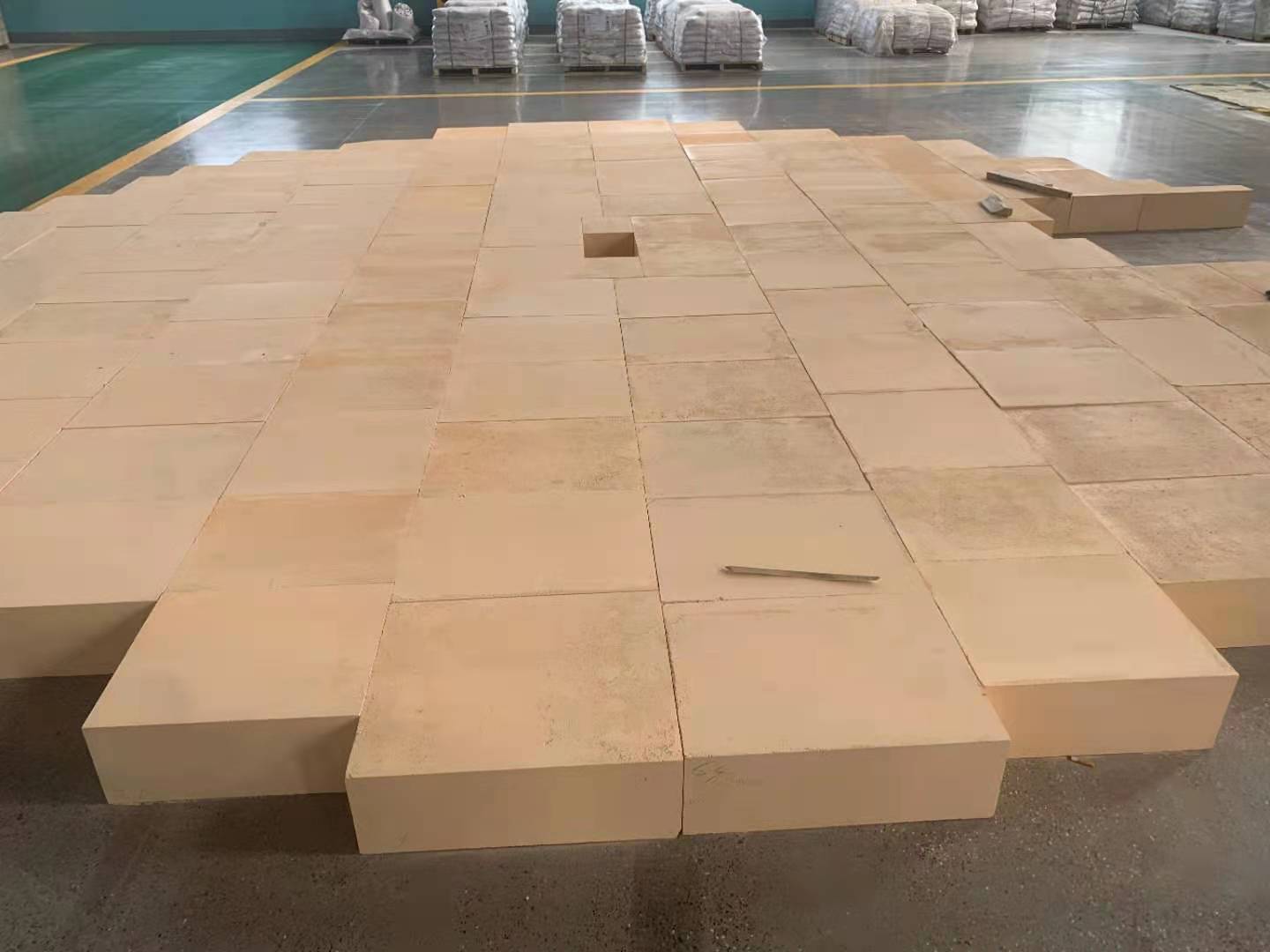

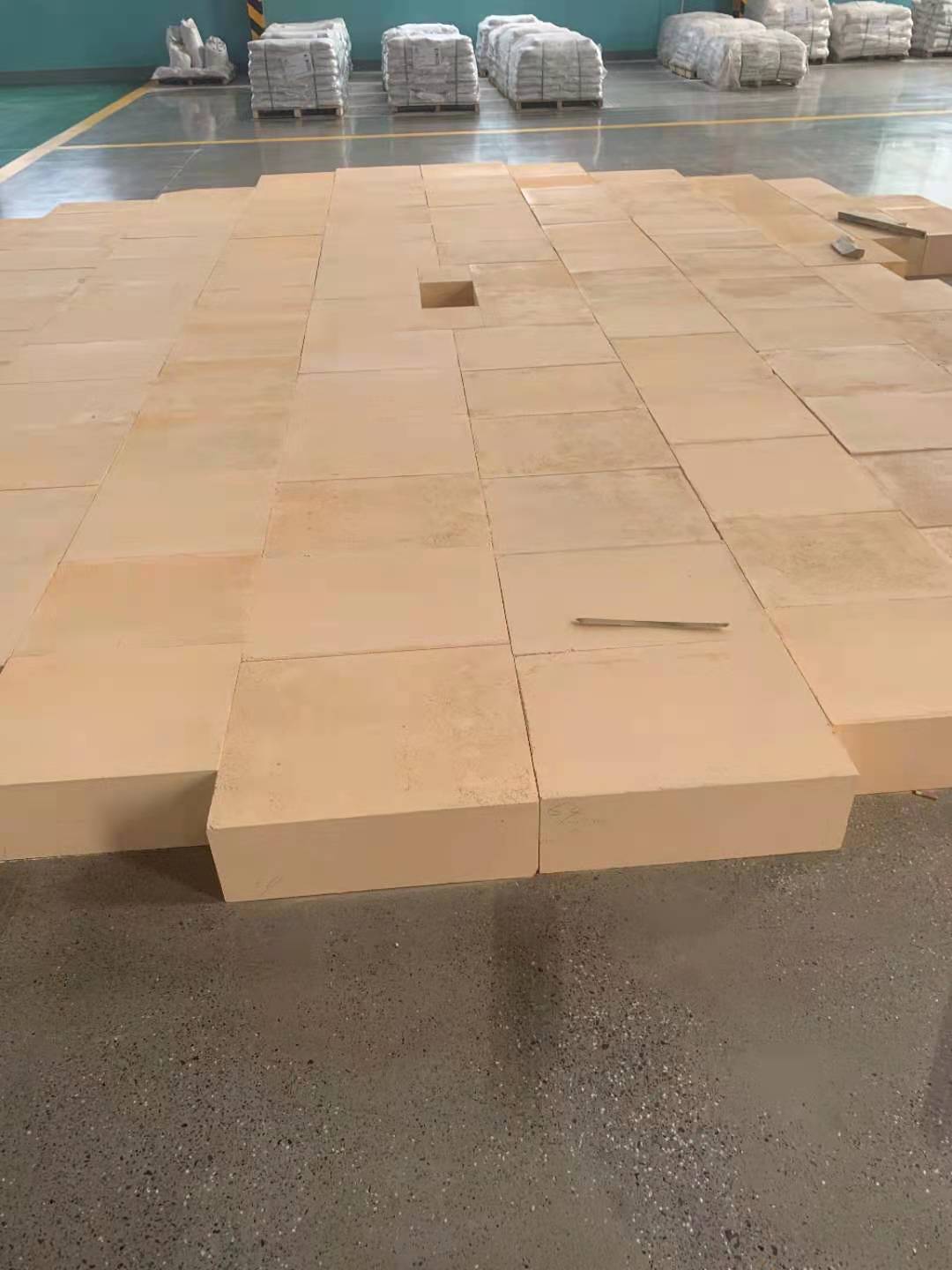

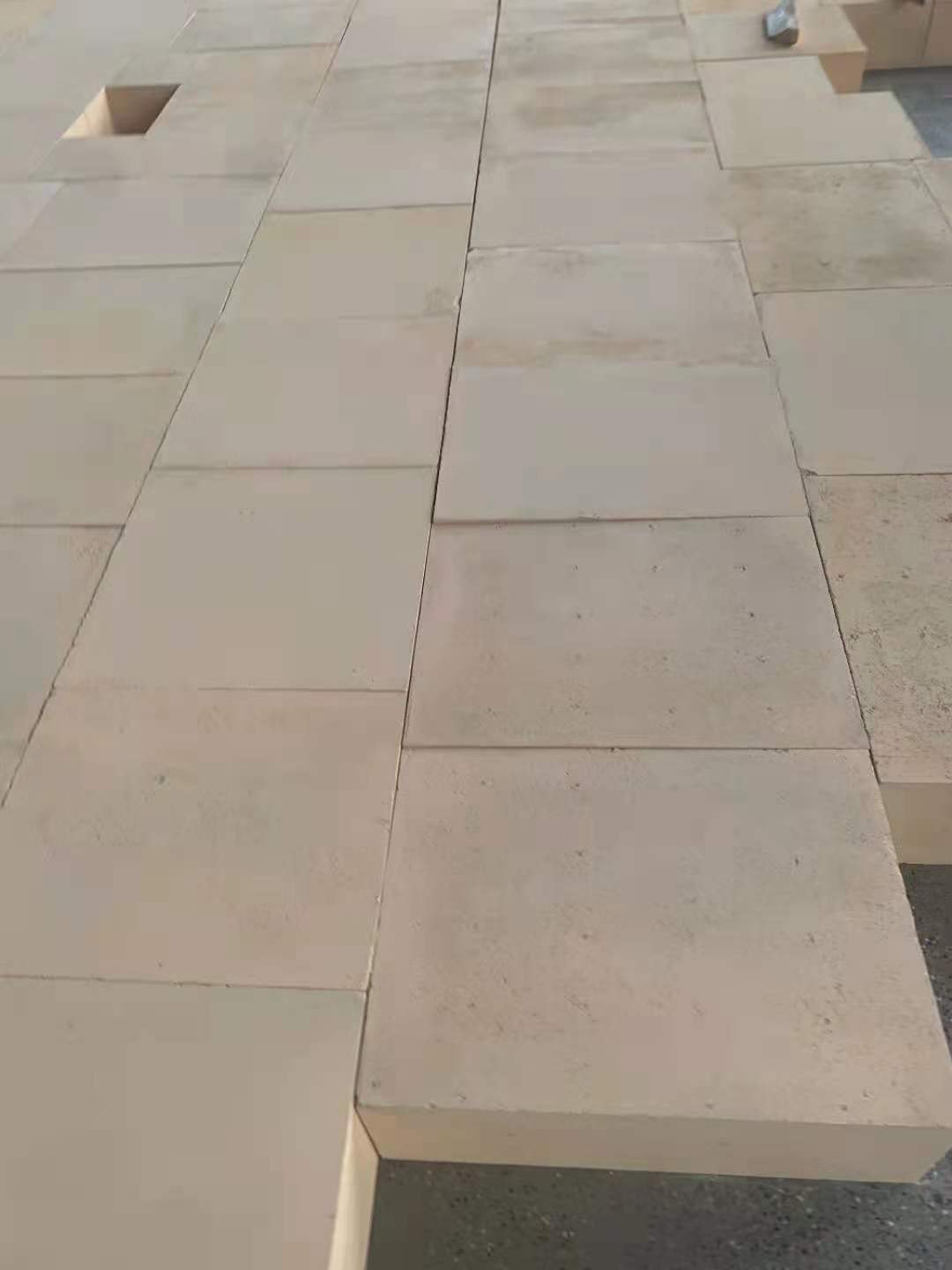

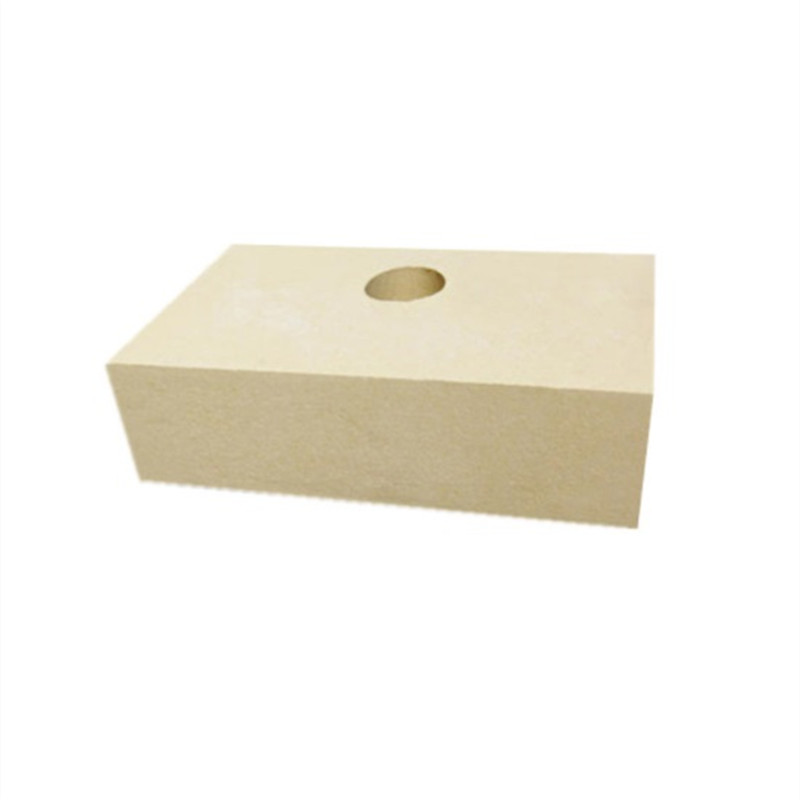

Product name : Zirconia brick
Zircon Brick Color : yellow
Zircon Mullite Brick Size : Customers' Requirement
ZrO2 : 65
Application : Ladle lining, Glass Kiln
Soften Point at 0.2 MPa load 0.2MPa≥ : 1700
Bulk Density : ≥3.6~4g/cm3
Zircon refractory brick Sample : Freely
FE2O3 : Max 0.5%
Certificate : ISO9001:2008

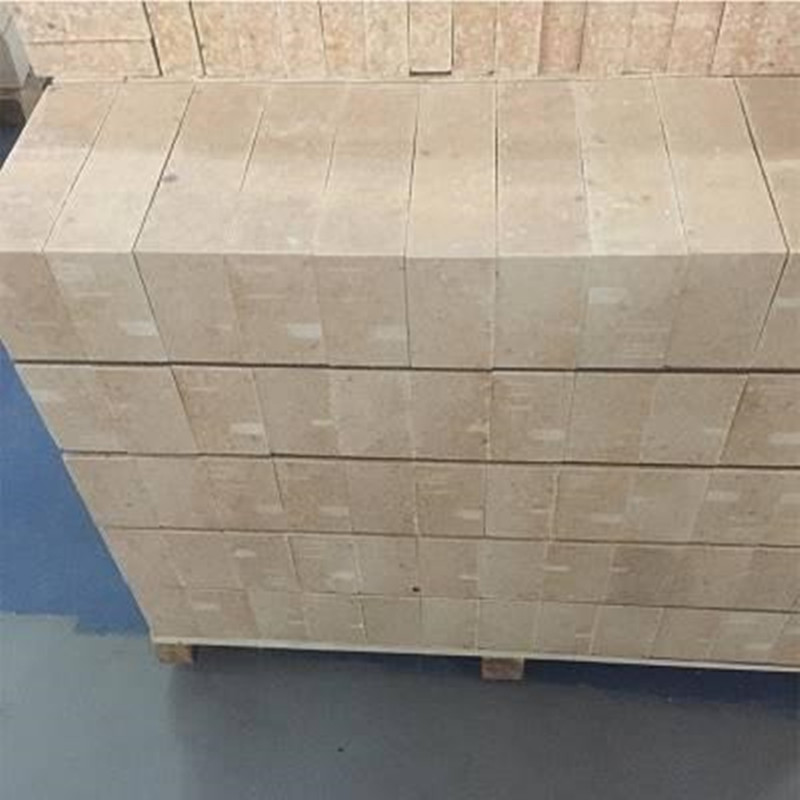

Packaging Details : Exportation worth wooden pallet or as per requirements
Supply Ability : 3000 Ton/Tons per Month Zircon brick
MOQ : 200 tons
Price : $2,000.00 - $5,000.00/tons
Product Name | Zirconia brick | ZrO2 | Min 65% |
Brand | Hongtai | Colour | Light yellow |
Raw material | Raw material | Place of Product | Henan,China |
Usage | Ladle lining, glass kiln | Modes of packing | Wooden pallets |
Size | Customer required | Samples | Freely supplied |
Item | Antistripping Zirconia brick | High quality Zirconia brick | Zirconia brick | Zirconia corundum brick | Zirconia mullite brick | Middle Zirconia brick | |||||
ZrO2 Min % | 65 | 65 | 63 | 31 | 20 | 15-20 | |||||
SiO2 Max % | 33 | 33 | 34 | 21 | 20 | ||||||
Al2O3 Min % | 46 | 60 | 50-60 | ||||||||
Fe2O3 Max % | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 1 | |||||
Apparent Porosity Max | 16 | 18 | 22 | 18 | 18 | 20 | |||||
Bulk density | 3.84 | 3.7 | 3.65 | 3.2 | 3.2 | 2.7 | |||||
Cold crushing strength Min | 130 | 100 | 90 | 110 | 150 | 100 | |||||
Refractoriness under load (0.2MPa 0.6%)Min | 1700 | 1670 | 1650 | 1650 | 1700 | 1550 | |||||
Reheating linear change (1600℃*8h) | ±0.2 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 | |||||
Typical Application | Mainly used for glass furnace, glass fiber furnace, rock cotton fiber furnace, garbage incinerator, ceramic frit glaze furnace, reheating furnace, ladle lining etc. |
![]() |
